Using Blocks

Section Block

Class

SectionBlock(text: Optional[TextLike] = None, block_id: Optional[str] = None, fields: Optional[Union[TextLike, List[TextLike]]] = None, accessory: Optional[Element] = None)

A section is one of the most flexible blocks available - it can be used as a simple text block, or with any of the available block elements.

Section blocks can also optionally be given an "accessory," which is typically one of the interactive Elements.

Arguments

Argument	Type	Description
text	Optional[TextLike]	text to include in the block. Can be a string or Text object (of either mrkdwn or plaintext variety). Defaults to markdown if unspecified. One of either text or fields must be provided.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.
fields	Optional[Union[TextLike, List[TextLike]]]	a list of text objects. One of either text or fields must be provided.
accessory	Optional[Element]	an optional Element object that will take a secondary place in the block (after or to the side of text or fields).

Errors

Error	When
InvalidUsageError	if any of the provided arguments fail validation checks.

slackblocks

from slackblocks import Checkboxes, Option, SectionBlock

SectionBlock(
    text="This is a section block with a checkbox accessory.",
    block_id="fake_block_id"
    accessory=CheckboxGroup(
        action_id="checkboxes-action",
        options=[
            Option(
                text="*Your Only Option*",
                value="option_one"
            )
        ]
    )
)

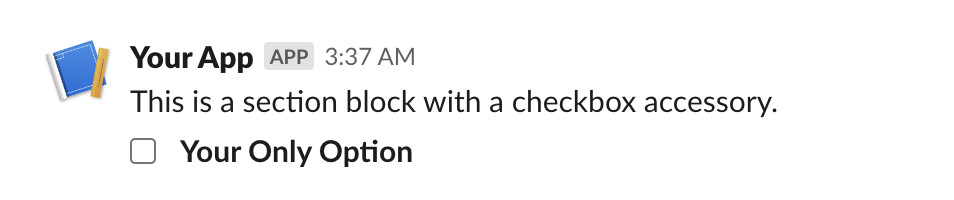

JSON

{
    "type": "section",
    "block_id": "fake_block_id",
    "text": {
        "type": "mrkdwn",
        "text": "This is a section block with a checkbox accessory."
    },
    "accessory": {
        "type": "checkboxes",
        "options": [
            {
                "text": {
                    "type": "mrkdwn",
                    "text": "*Your Only Option*"
                },
                "value": "option_one"
            }
        ],
        "action_id": "checkboxes-action"
    }
}

Slack UI

Rich Text Block

Class

RichTextBlock(elements: Union[RichTextObject, List[RichTextObject]], block_id: Optional[str] = None)

A RichTextBlock is used to provide easier rich text formatting than standard markdown text (e.g. in a SectionBlock) and access to text formatting features not available in traditional markdown (e.g. strikethrough). See the various rich text elements you can include here.

Arguments

Argument	Type	Description
elements	Union[RichTextObject, List[RichTextObject]]	a single rich text element or a list of those elements.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

Errors

Error	When
InvalidUsageError	if the elements in elements are not valid rich text elements.

slackblocks

from slackblock import RichTextBlock, RichTextSection, RichText

RichTextBlock(
    RichTextSection(
        [
            RichText(
                "You 'bout to witness hip-hop in its most purest",
                bold=True,
            ),
            RichText(
                "Most rawest form, flow almost flawless",
                strike=True,
            ),
            RichText(
                "Most hardest, most honest known artist",
                italic=True,
            ),
        ]
    ),
    block_id="fake_block_id",
)

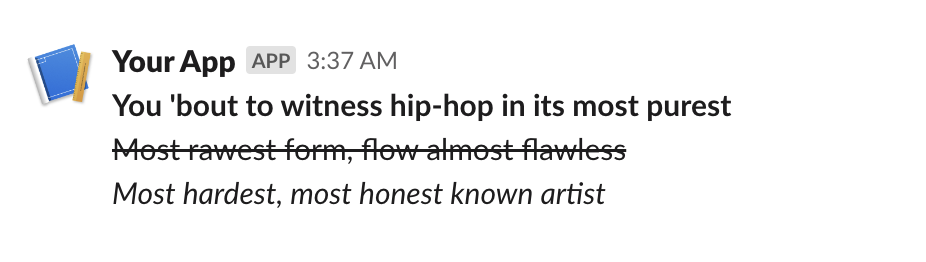

JSON

{
    "type": "rich_text",
    "block_id": "fake_block_id",
    "elements": [
        {
            "type": "rich_text_section",
            "elements": [
                {
                    "type": "text",
                    "text": "You 'bout to witness hip-hop in its most purest\n",
                    "style": {
                        "bold": true
                    }
                },
                {
                    "type": "text",
                    "text": "Most rawest form, flow almost flawless\n",
                    "style": {
                        "strike": true
                    }
                },
                {
                    "type": "text",
                    "text": "Most hardest, most honest known artist\n",
                    "style": {
                        "italic": true
                    }
                }
            ]
        }
    ]
}

Slack UI

Header Block

Class

HeaderBlock(text: Union[str, Text], block_id: Optional[str] = None)

A Header Block is a plain-text block that displays in a larger, bold font.

Arguments

Argument	Type	Description
text	Union[str, Text]	the text that will be rendered as a heading.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

slackblocks

from slackblocks import HeaderBlock

HeaderBlock(
    "This is a header block",
)

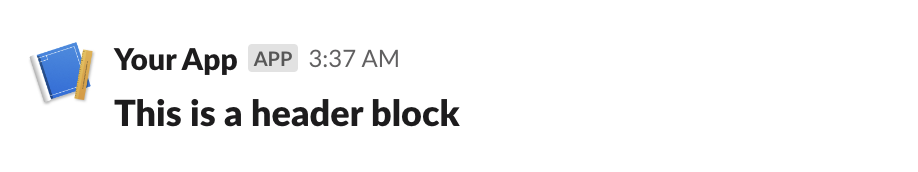

JSON

{
    "type": "header",
    "text": {
        "type": "plain_text",
        "text": "This is a header block",
        "emoji": true
    }
}

Slack UI

Image Block

Class

ImageBlock(image_url: str, alt_text: Optional[str] = ' ', title: Optional[Union[Text, str]] = None, block_id: Optional[str] = None)

An Image Block contains a single graphic, accessed by URL.

Arguments

Argument	Type	Description
image_url	str	the URL pointing to the image file you want to display.
alt_text	Optional[str]	alternative text for accessibility purposes and when the image fails to load.
title	Optional[Union[Text, str]]	an optional text title to be presented with the image.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

Errors

Error	When
InvalidUsageError	when one or more of the provided args fails validation.

slackblocks

from slackblocks import ImageBlock

ImageBlock(
    image_url="https://api.slack.com/img/blocks/bkb_template_images/beagle.png",
    alt_text="a beagle",
    title="dog",
    block_id="fake_block_id",
)

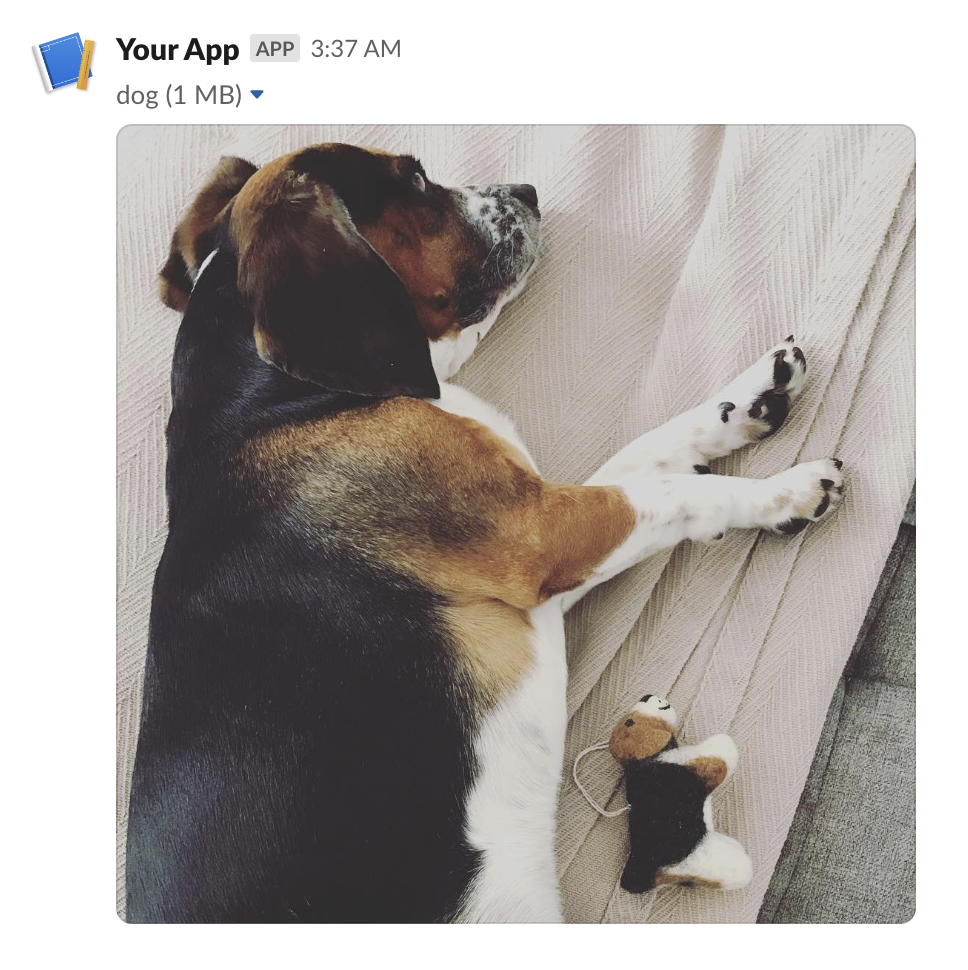

JSON

{
    "type": "image",
    "block_id": "fake_block_id",
    "image_url": "https://api.slack.com/img/blocks/bkb_template_images/beagle.png",
    "alt_text": "a beagle",
    "title": {
        "type": "plain_text",
        "text": "dog"
    }
}

Slack UI

Input Block

Class

InputBlock(label: TextLike, element: Element, dispatch_action: bool = False, block_id: Optional[str] = None, hint: Optional[TextLike] = None, optional: bool = False)

A block that collects information from users - it can hold a plain-text input element, a checkbox element, a radio button element, a select menu element, a multi-select menu element, or a datepicker.

Arguments

Argument	Type	Description
label	TextLike	the name which identifies the input field.
element	Element	an interactive Element (e.g. a text field).
dispatch_action	bool	whether the Element should trigger the sending of a block_actions payload.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.
hint	Optional[TextLike]	an optional additional guide on what input the user should prodive.
optional	bool	whether this input field may be empty when the user submits e.g. the modal.

Errors

Error	When
InvalidUsageError	when any of the provided arguments fail validation.

slackblocks

from slackblocks import InputBlock, Text, TextType, PlainTextInput

InputBlock(
    label=Text("Label", type_=TextType.PLAINTEXT, emoji=True),
    hint=Text("Hint", type_=TextType.PLAINTEXT, emoji=True),
    element=PlainTextInput(action_id="action"),
    block_id="fake_block_id",
    optional=True,
)

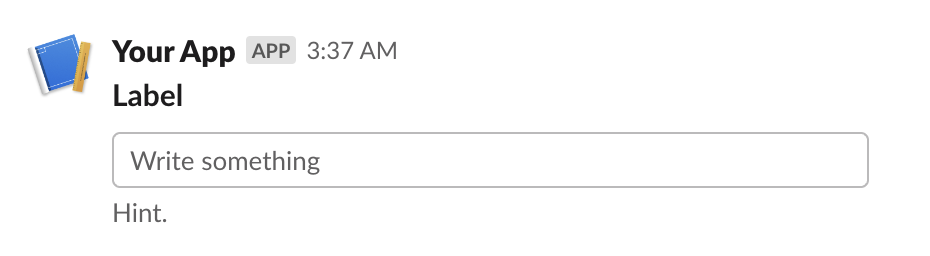

JSON

{
    "type": "input",
    "block_id": "fake_block_id",
    "label": {
        "type": "plain_text",
        "text": "Label",
        "emoji": true
    },
    "element": {
        "type": "plain_text_input",
        "action_id": "action"
    },
    "hint": {
        "type": "plain_text",
        "text": "Hint",
        "emoji": true
    },
    "optional": true
}

Slack UI

Divider Block

Class

DividerBlock(block_id: Optional[str] = None)

A content divider, like an <hr> in HTML, to split up different blocks inside of a message.

Arguments

Argument	Type	Description
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

slackblocks

from slackblocks import DividerBlock

DividerBlock()

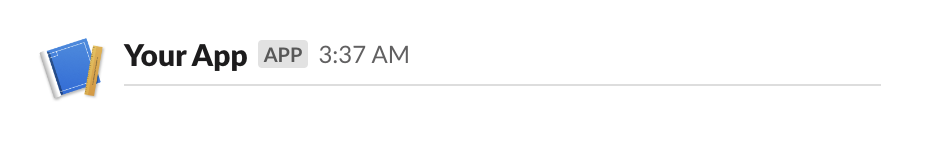

JSON

{
    "type": "divider"
}

Slack UI

File Block

Class

FileBlock(external_id: str, block_id: Optional[str], source: str = 'remote')

Displays a remote file (e.g. a PDF).

For details on how remote files are exposed to Slack, see https://api.slack.com/messaging/files#adding.

Arguments

Argument	Type	Description
external_id	str	the ID assigned to the remote file when it was added to Slack.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.
source	str	always "remote" as per the Slack API (may change in the future).

slackblocks

from slackblocks import FileBlock

FileBlock(
    external_id="external_id",
    block_id="fake_block_id",
)

JSON

{
    "type": "file",
    "external_id": "external_id",
    "source": "remote",
    "block_id": "fake_block_id"
}

Slack UI

• Note that this example comes from the Slack Web API docs.

Context Block

Class

ContextBlock(elements: Optional[List[Union[Element, CompositionObject]]] = None, block_id: Optional[str] = None)

A ContextBlock displays contextul message info, including both images and text.

Arguments

Argument	Type	Description
elements	Optional[List[Union[Element, CompositionObject]]]	a list of Text objects and Image elements.
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

Errors

Error	When
InvalidUsageError	when items in elements are not Text or Image or exceed 10 items.

slackblocks

from slackblocks import ContextBlock, Text

ContextBlock(
    elements=[
        Text("Hello, world!"),
    ],
    block_id="fake_block_id"
)

JSON

{
    "type": "context",
    "block_id": "fake_block_id",
    "elements": [
        {
            "type": "mrkdwn",
            "text": "Hello, world!"
        }
    ]
}

Slack UI

Actions Block

Class

ActionsBlock(elements: Optional[List[Element]] = None, block_id: Optional[str] = None)

A Block that is used to hold interactive elements (normally for users to interface with).

Arguments

Argument	Type	Description
elements	Optional[List[Element]]	a list of Elements (up to a maximum of 25).
block_id	Optional[str]	you can use this field to provide a deterministic identifier for the block.

Errors

Error	When
InvalidUsageError	if any of the items in elements are invalid.

slackblocks

ActionsBlock(
    block_id="fake_block_id",
    elements=CheckboxGroup(
        action_id="actionId-0",
        options=[
            Option(text="*a*", value="a", description="*a*"),
            Option(text="*b*", value="b", description="*b*"),
            Option(text="*c*", value="c", description="*c*"),
        ],
    ),
)

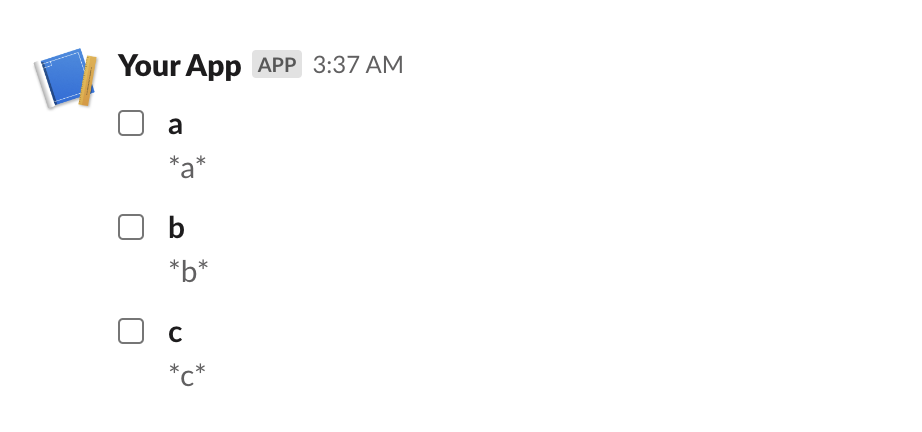

JSON

{
    "type": "actions",
    "block_id": "fake_block_id",
    "elements": [
        {
            "type": "checkboxes",
            "action_id": "actionId-0",
            "options": [
                {
                    "text": {
                        "type": "mrkdwn",
                        "text": "*a*"
                    },
                    "value": "a",
                    "description": {
                        "type": "plain_text",
                        "text": "*a*"
                    }
                },
                {
                    "text": {
                        "type": "mrkdwn",
                        "text": "*b*"
                    },
                    "value": "b",
                    "description": {
                        "type": "plain_text",
                        "text": "*b*"
                    }
                },
                {
                    "text": {
                        "type": "mrkdwn",
                        "text": "*c*"
                    },
                    "value": "c",
                    "description": {
                        "type": "plain_text",
                        "text": "*c*"
                    }
                }
            ]
        }
    ]
}

Slack UI
